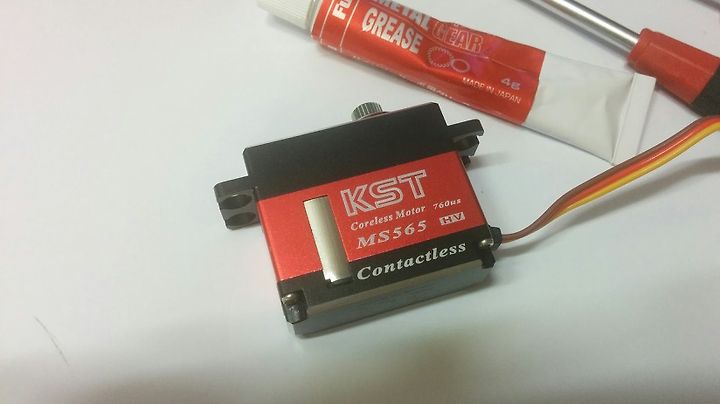

Inside of KST MS565 & MS325 hall sensor servos.
vcsel
2017. 8. 2. 00:34
Grease is well applied.

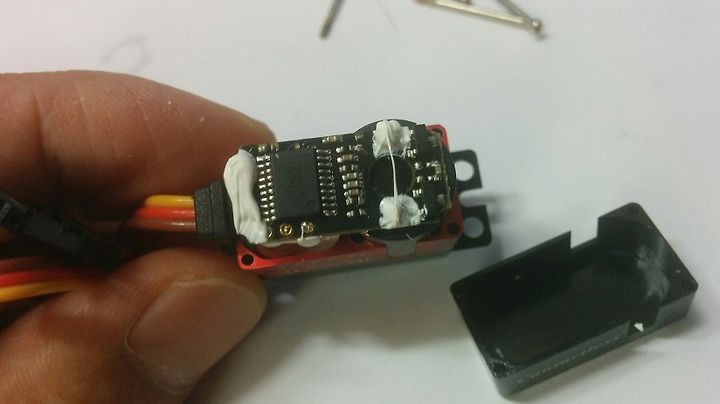

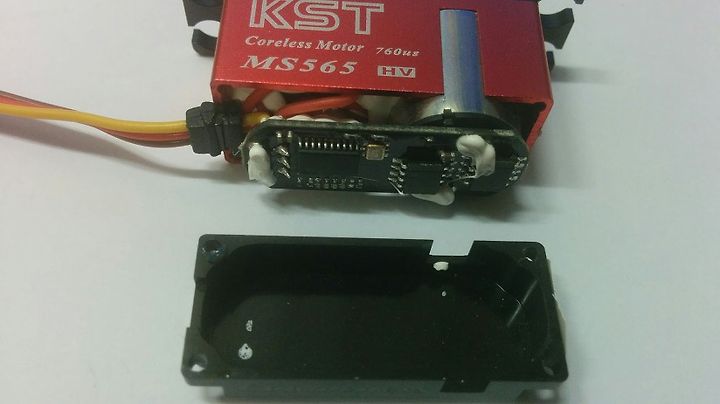

No insulation pad on bottom case, so I added some kapton tape(MS325 is too).

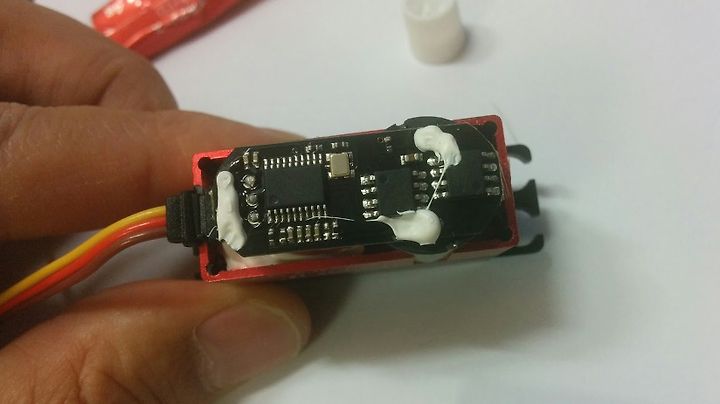

Two 8-pin FETs, like BK DS-5005HV servo.
Two 3-pin FETs, BK DS-3001HV has four FETs.
Three red wires for hall sensor.
The motor is well tied up to middle case.
