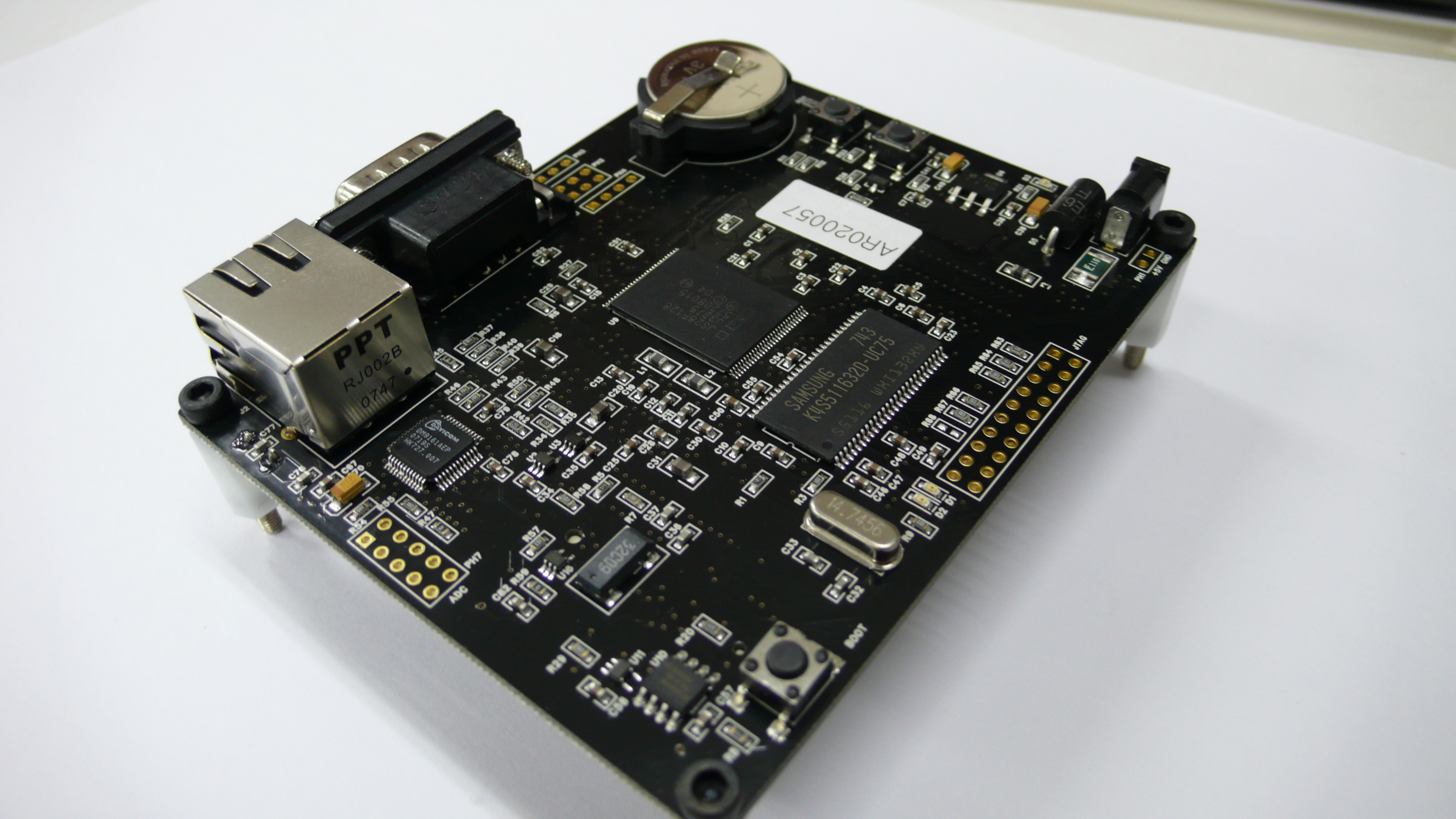

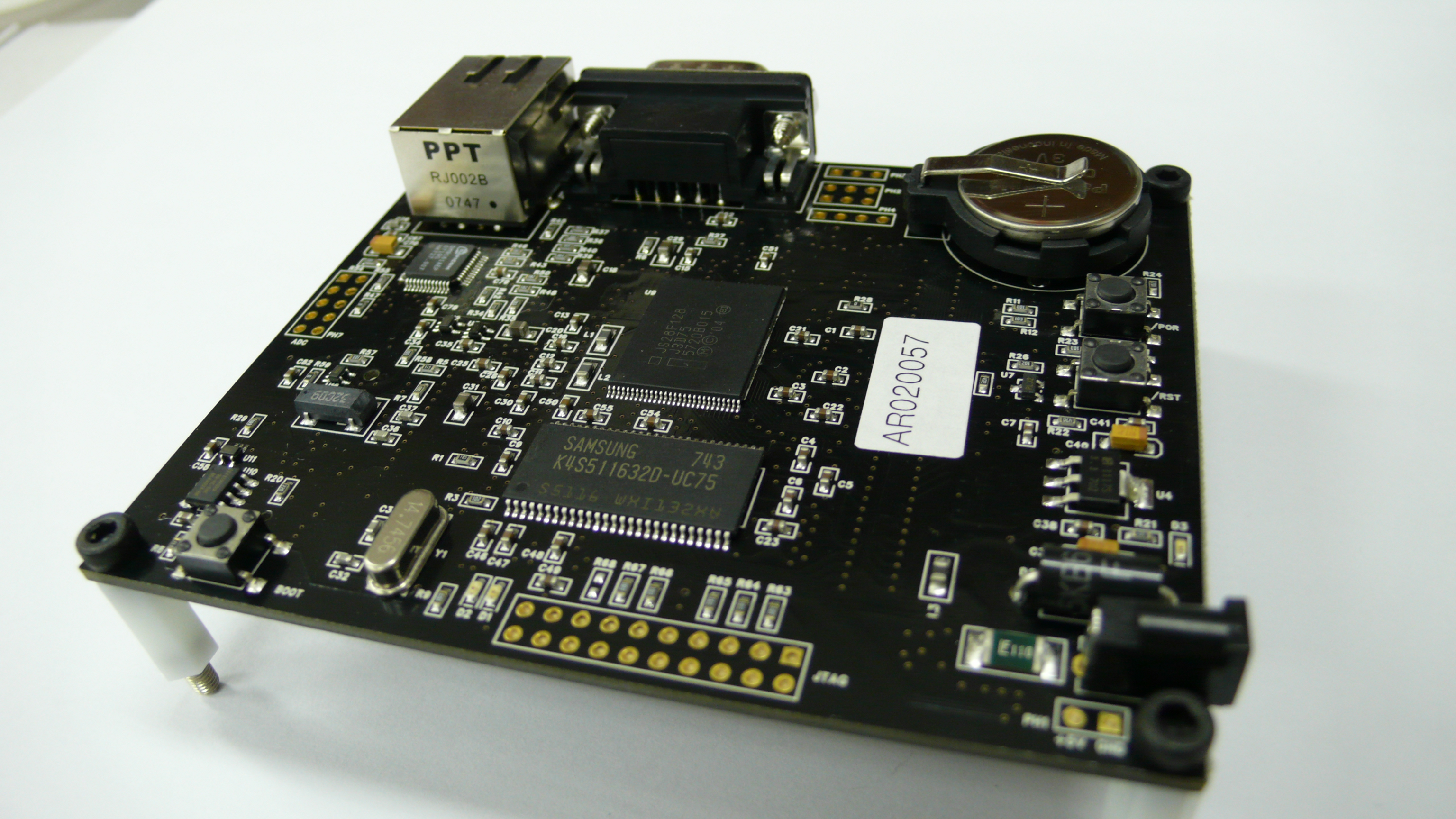

cirrus logic EP9302 evaluation board

012

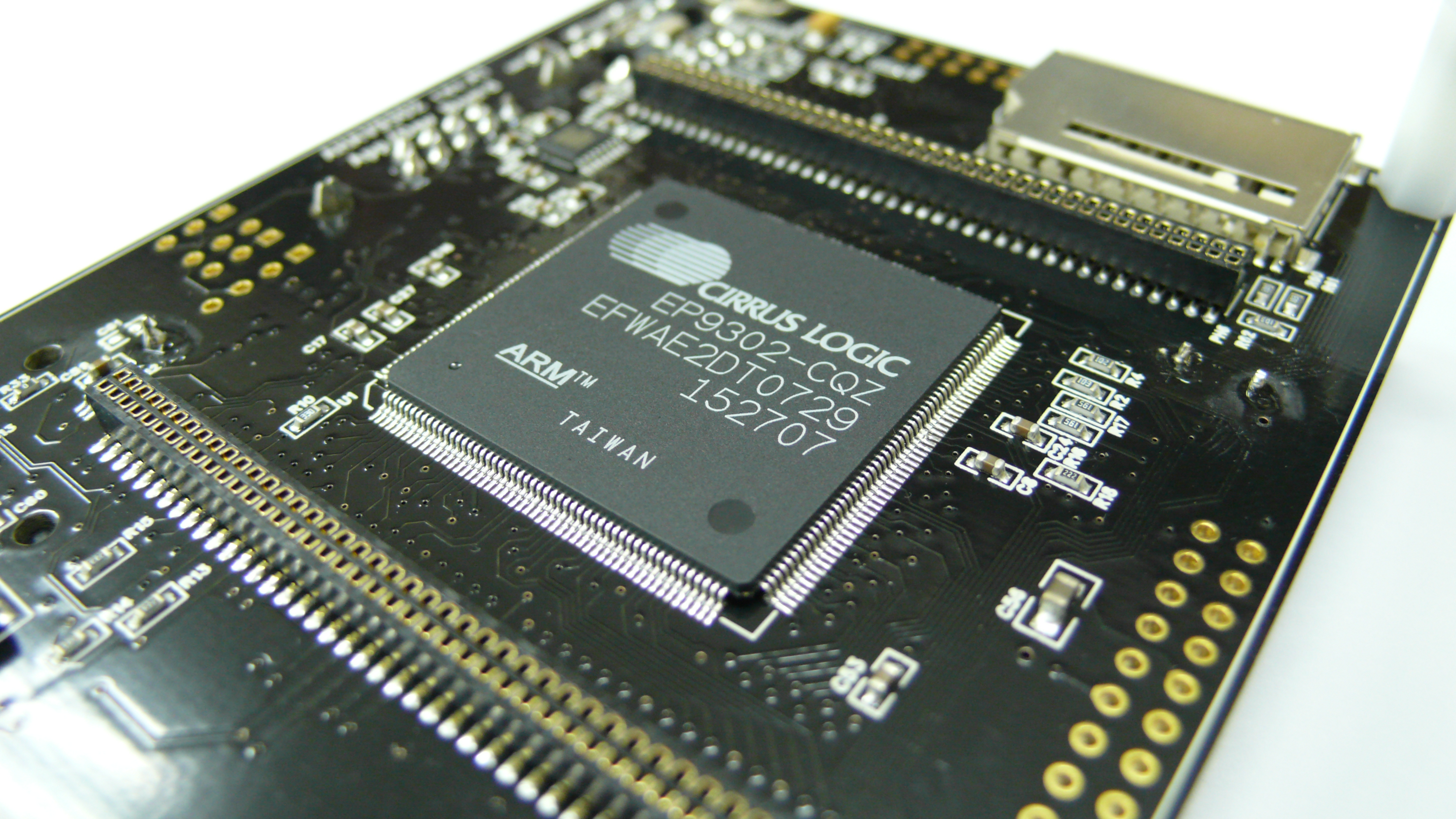

EP9302

EP9302 FEATURES
• 200-MHz ARM920T Processor
• 16-kbyte Instruction Cache
• 16-kbyte Data Cache
• Linux®, Microsoft® Windows® CE-enabled MMU
• 100-MHz System Bus
• MaverickCrunch™ Math Engine
• Floating point, Integer and Signal Processing
Instructions
• Optimized for digital music compression and
decompression algorithms.
• Hardware interlocks allow in-line coding.
• MaverickKey™ IDs
• 32-bit unique ID can be used for DRM-compliant,
128-bit random ID.
• Integrated Peripheral Interfaces
• 16-bit SDRAM Interface (up to 4 banks)
• 16-bit SRAM / FLASH / ROM
• Serial EEPROM Interface
• 1/10/100 Mbps Ethernet MAC
• Two UARTs
• Two-port USB 2.0 Full-speed Host (OHCI)
(12 Mbits per second)
• IrDA Interface
• ADC
• Serial Peripheral Interface (SPI) Port
• 6-channel Serial Audio Interface (I2S)
• 2-channel, Low-cost Serial Audio Interface (AC'97)
• Internal Peripherals
• 12 Direct Memory Access (DMA) Channels
• Real-time Clock with Software Trim
• Dual PLL controls all clock domains.
• Watchdog Timer
• Two General-purpose 16-bit Timers
• One General-purpose 32-bit Timer
• One 40-bit Debug Timer
• Interrupt Controller
• Boot ROM
• Package
• 208-pin LQFP
